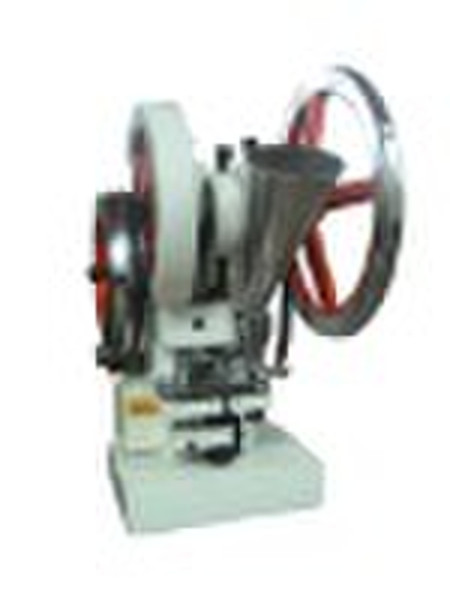

TDP series single punch tablet press

Instruction and features A. This machine is used to press all kinds of granular raw materials into tablets, as well as is used widely in making small lots of tablets, sugar tablets, calcium tablets and heterogeneous tablets in pharmaceutical, chemical industry, foodstuff factory and science research unit of hospital, etc. B. It is a type of mini desk-top electric tablet press that is operated by electricity, as well as be waved in hand, it fixed a set of die, with some characteristics of convenient use, easy to maintain,small volume and light weight .The filling depth of material, pressure and thickness of tablets are adjustable. Main technical parameter Item 1.5TDP 5TDP 6TDP Max pressure of tablet 15 kn 50 kn 60 kn Max diameter of tablet 12 mm 16 mm 25 mm Max filling depth (mm) 11 mm 12 mm 18 mm Max thickness of tablet 6 mm 6 mm 10 mm Production capacity 4000-6000pcs/h 3600pcs/h 3600pec/h Power 550w 1400r/min 750w 1400r/min 1.1kw1400r/min Overall dimension (mm) 580x 450 x625 580 x500 x700 650x 600 x700 weight 70kg 125kg 165kg
