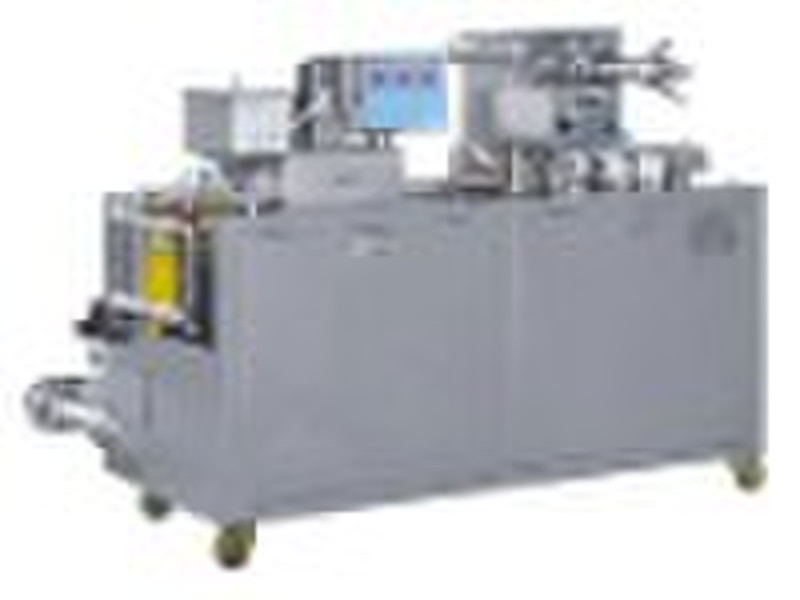

DPB-88 Blister packing machine

Applications: 1.Travel scope can be adjusted.Mould is located by located groove so that it's easy to change mould,The machine heats the PVC through conduction and forms it through pressing and frothing. 2.The material is fed automatically.The mould and feeding equipment can be desi-gned as user's requir ements. 3.The heating moulds will automatically separate when the machine stops,which contributes to protect the material between them and extend the machine's life. 4.The equipment of trace pressing,batch number printing and scrap-collecting can be chose. 5.Manipulator grip and tow wrapper,straight to-and-fro running,synchroning accu-rately and stably. 6.Speed is shifted by stepless transducer;the operation panel of PC cycle (can be adopted interface of human-machine). Main technical data: Model88H140HBlanking frequency(times/min) 10-35 10-35 Sheet's quantity of one blanking(sheets) 1 1-2 Adjustable scope of feed travel(mm) 600-2100 1200-4200 Appropriate for Capsule 10-100 40-110 Max Forming area and depth(mm)110×90 14×100Capacity of air compressor((m3/min) ) ≥0.25 ≥0.36 Power supply220V 50Hz 4.5KW 380V 50Hz 6.5KW Wrapper specification(mm)PVC for medicine(mm) 110×(0.15-0.5) 140×(0.15-0.5) Aluminum foil110×(0.02-0.035) 140×(0.02-0.035) Overall dimensions(mm) 1800×460×1070 2850×530×1400 Weight(Kg)500 900
